Home > Billet compressor wheel >

TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : TD04H

Certification : ISO

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:TD04H reverse

2.TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose Diameter:11.50mm

Inducer:54.35mm

exducer:68.00mm

Tapered tip exducer:71.02mm

Tip height:5.64mm

Superback:1.90mm

bore size :5.00mm

bore type:through

Overall height:32.40mm

Trailing angle:45 degree

Cutback:0.0mm

Blades height:28.50mm

Sp Height angle:-5.00

Splitter height:17.40mm

6+6 blades

reverse rotation

It is custom size ,please check carefully before buying.

Tapered tip angle:18 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the billet compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

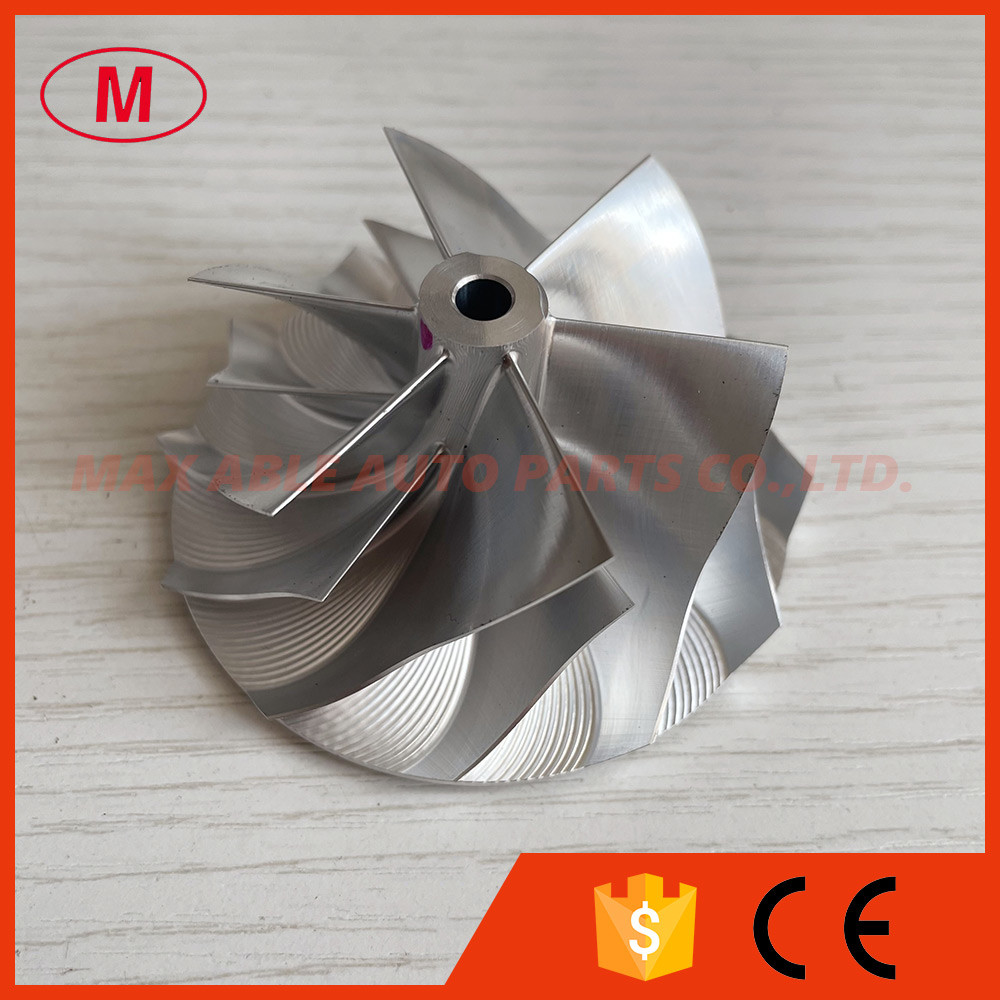

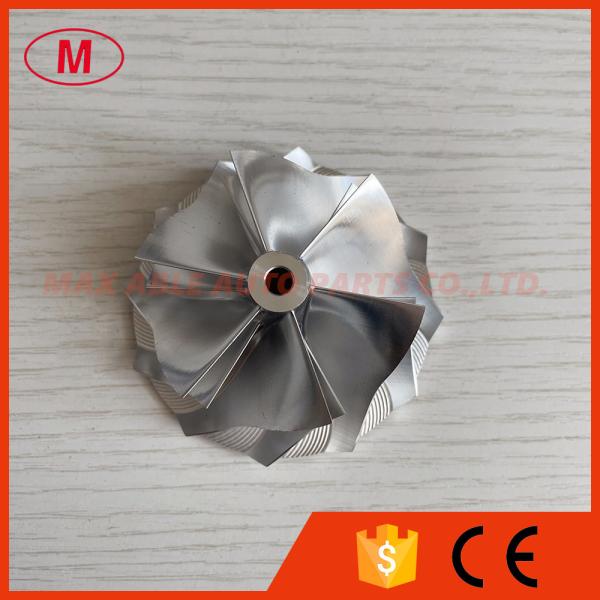

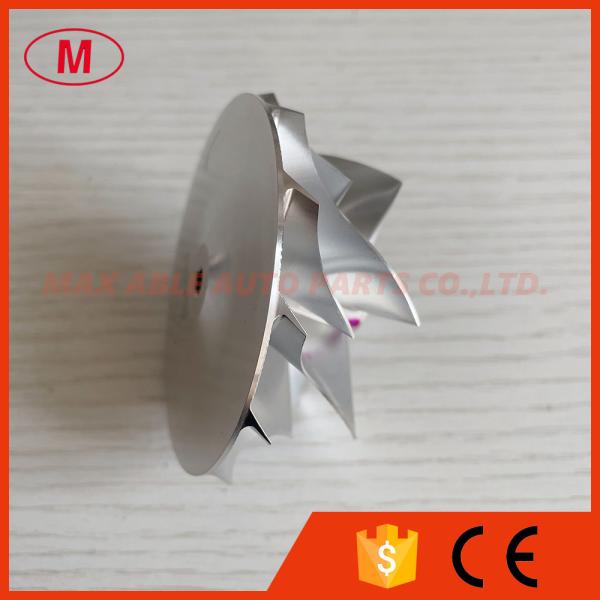

TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel Images
