RHF3 31.00/40.00mm 5+5 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel

Brand Name : NO

Model Number : RHF3

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. RHF3 31.00/40.00mm 5+5 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for CK27, VJ2, VJ27, VL36, VL38, 55212916, 55222014, 55218934, 71724555, 71724556, 71724485, 55248311, 71794951 Fia-t 500 Abarth T-jet motor, Romeo Mito, F-iat Grande Punto 1.4L, F-iat Bravo 1.4L, Lancia Delta III 1.4L

2.Size:

Nose diameter:9.00mm

Inducer :31.00mm

Exducer:40.00mm

Tapered tip exducer:43.33mm

Tip height:3.68mm

superback:1.06mm

Overall height:21.40mm

bore size:4.41mm

bore type:through

Trailing Angle:60 degree

Cutback:3.0mm

SP height angle:5.00

Blade height:18.20mm

Splitter height:9.25mm

5+5 blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

3.High quality and competitive price.

We have more size and we can produce as your requirement .

All the compressor wheel have been balanced

Skype: maxabledieselparts

Wechat/whatsapp:+ 86-18018657719

RHF3 31.00/40.00mm 5+5 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel

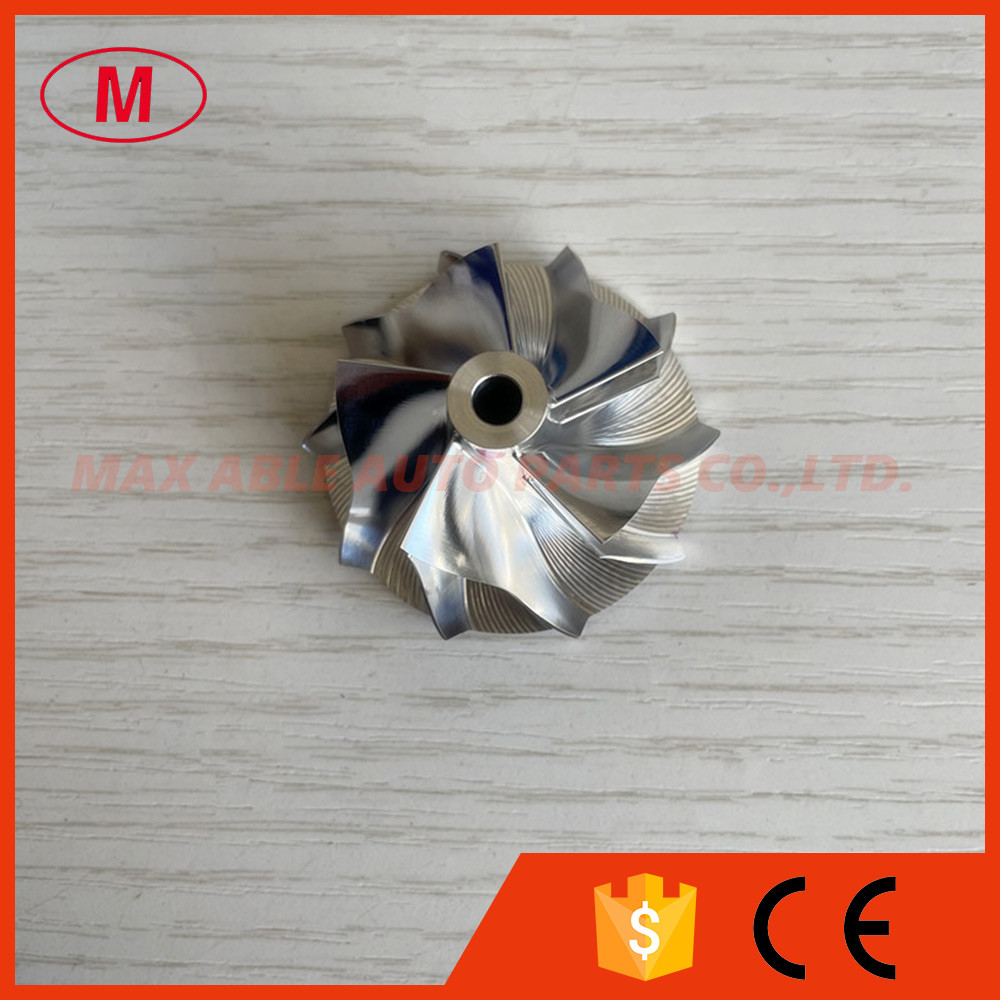

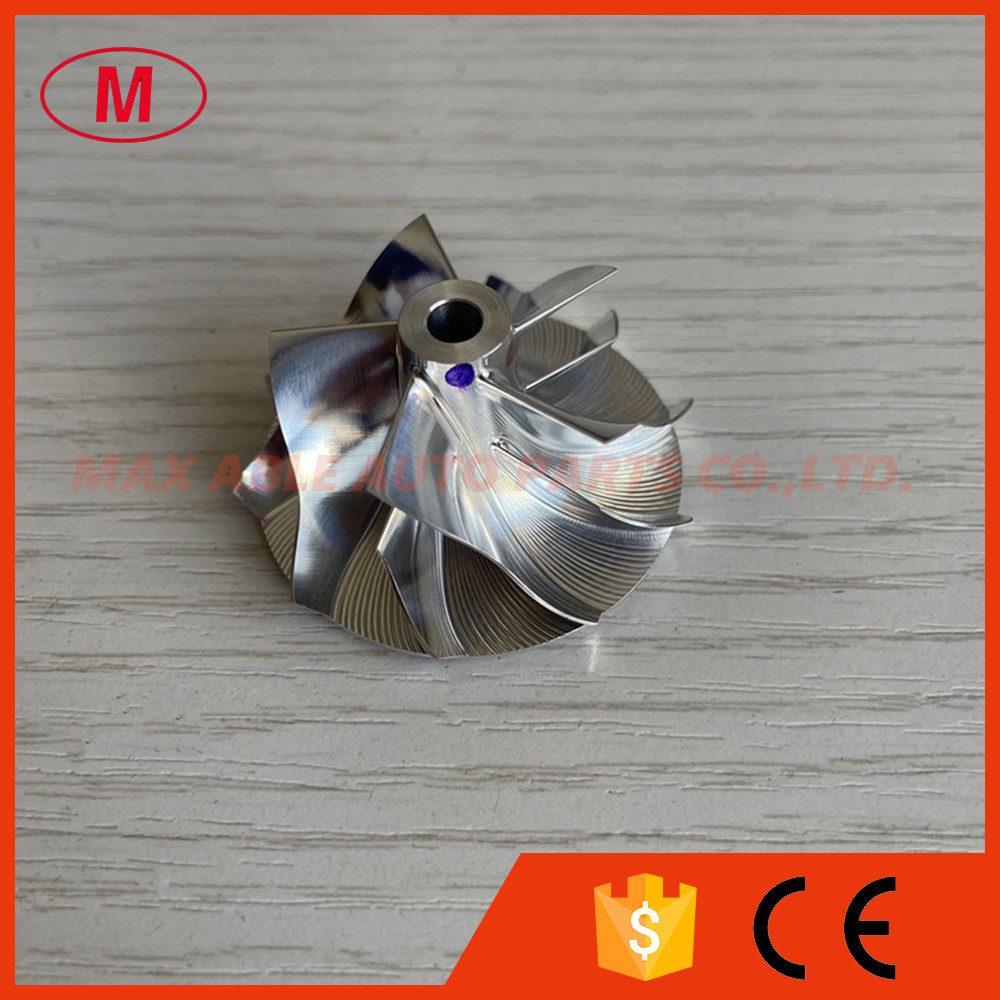

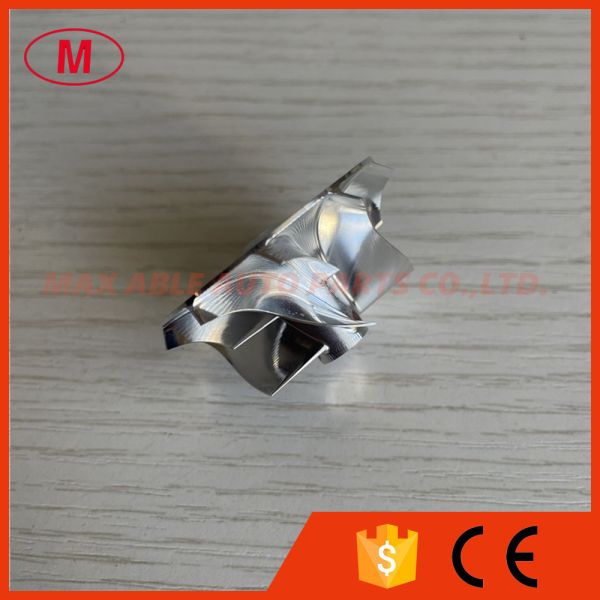

RHF3 31.00/40.00mm 5+5 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel Images
