TD09 forward 77.40/110.00mm 9+9blades 49132-40631 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49132-04000, 49132-04010, 49132-04020, 49132

Quality TD09 forward 77.40/110.00mm 9+9blades 49132-40631 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49132-04000, 49132-04010, 49132-04020, 49132 for sale

Brand Name : NO

Model Number : TD09

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : neutral packing

Contact Now

1. MODEL:TD09 forward

2.TD09 forward 77.40/110.00mm 9+9 blades 49132-40631 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49132-04000, 49132-04010, 49132-04020, 49132-09530, TD09-36QRC-21.0 Earth Moving Construction Engine FGLD180 L6

3.Size:

Nose diameter:25.30 mm

inducer:77.40mm

exducer:110.00mm

Tip height:7.72mm

Superback:6.43mm

Blade height:39.40mm

Overall height:54.40mm

bore size :9.12mm

bore type :through

Trailing angle:45 degree

Tapered tip Angle: 0 degree

Cutback:1.0mm

Splitter height:23.30mm

Sp height angle:1.50

9+9 blades

forward rotation

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD09 forward 77.40/110.00mm 9+9blades 49132-40631 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49132-04000, 49132-04010, 49132-04020, 49132

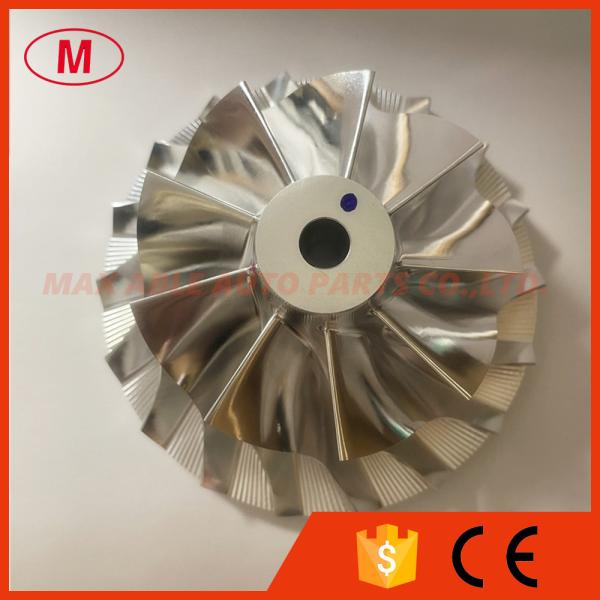

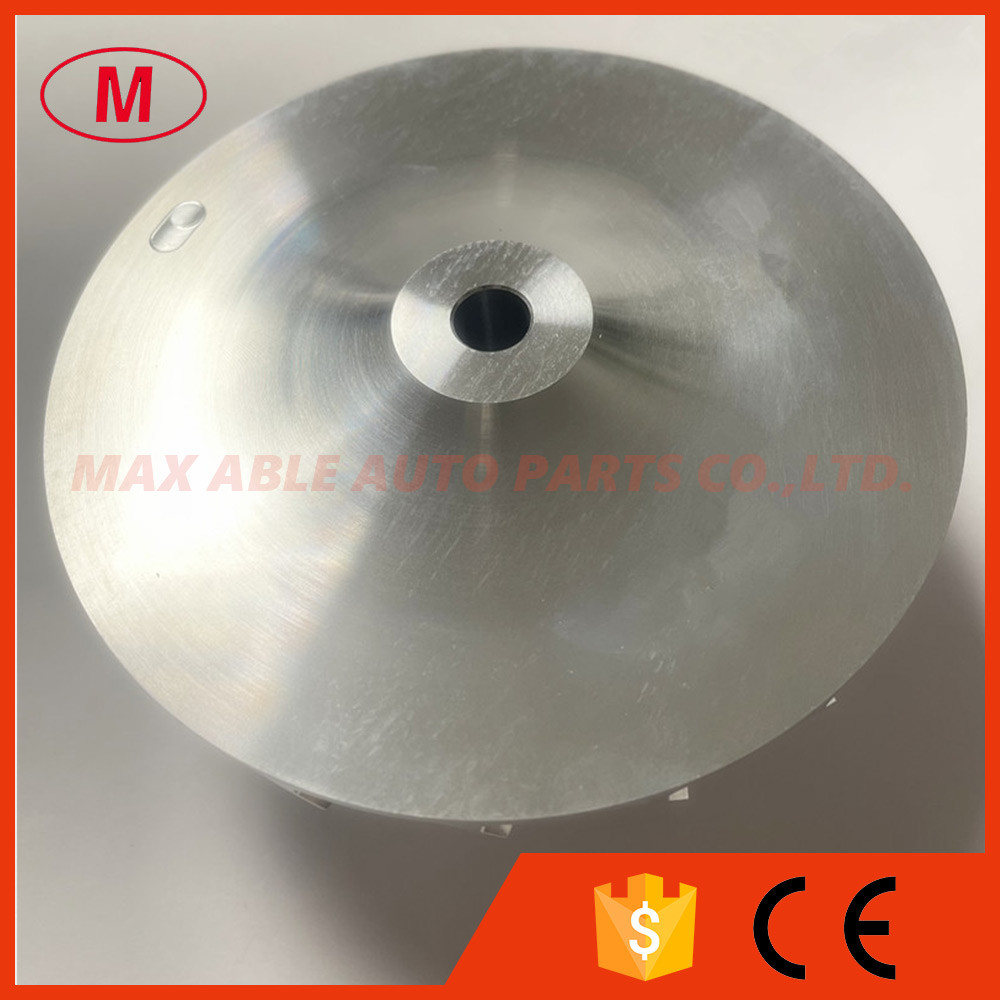

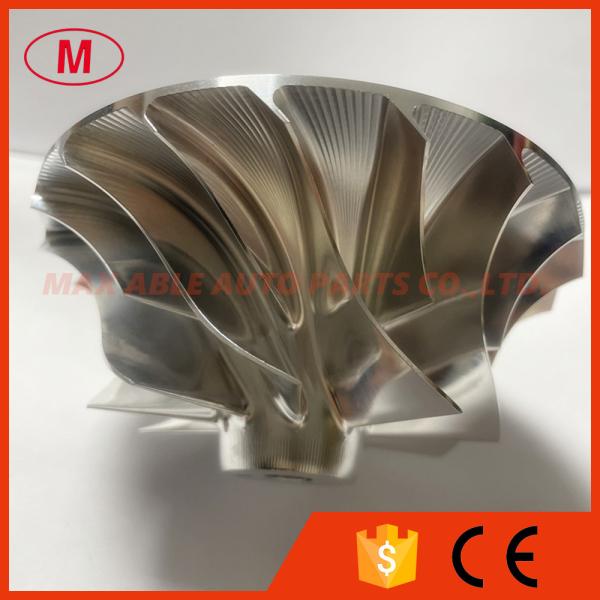

TD09 forward 77.40/110.00mm 9+9blades 49132-40631 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49132-04000, 49132-04010, 49132-04020, 49132 Images
