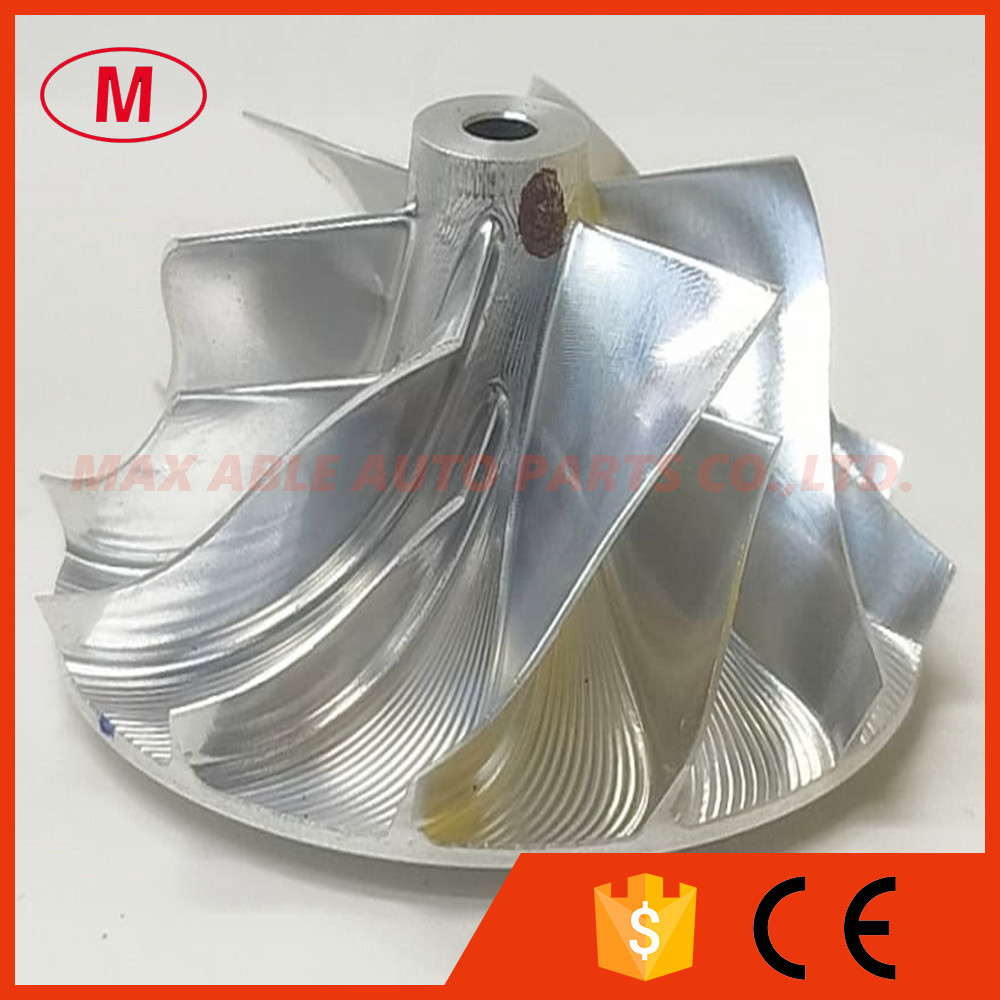

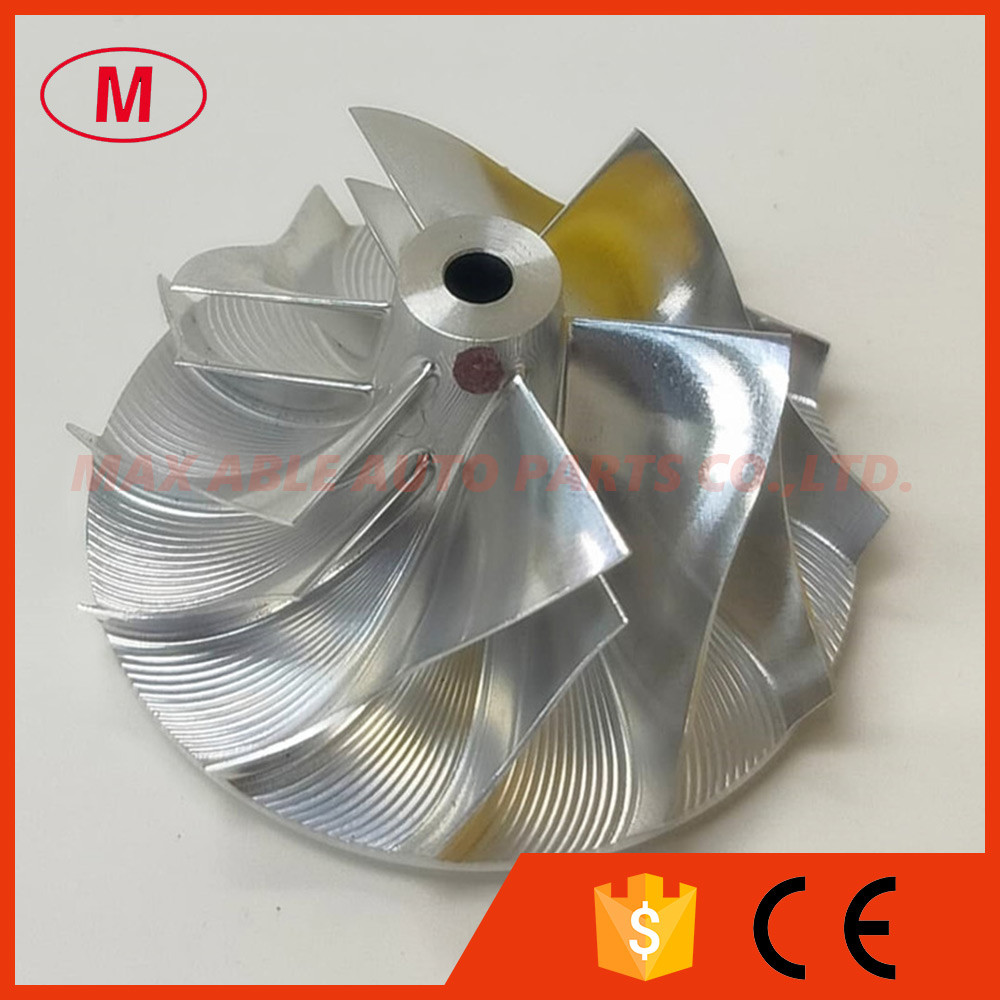

TD03 reverse 36.50/48.00mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : td03

Certification : ISO

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:TD03 reverse

2.TD03 reverse 36.50/48.00mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose Diameter:9.67mm

Inducer:36.50mm

exducer:48.00mm

Tapered tip exducer:51.29mm

Tip height:3.85mm

Superback:1.68mm

bore size :4.00mm

bore type:through

Overall height:21.60mm

Trailing angle:70 degree

Blade height:17.14mm

Cutback:.0.00mm

Sp Height angle:-2.40

Splitter height:11.35mm

Tapered tip angle: 30 degree

6+6 blades reverse

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
