TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades turbo milling/aluminum 2618/Billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : TD04H

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : neutral packing

Contact Now

1. TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades turbo milling/aluminum 2618/Billet compressor wheel for 49189-01000 VOLVO B230FT

2.Size:

Nose diameter:12.20mm

Inducer :40.00mm

Exducer:53.00mm

Tapered tip exducer:57.56mm

Tip height:4.95mm

superback:1.90mm

Overall height:23.40mm

bore size:5.00mm

bore type:through

Trailing angle:60 degree

Cutback:0.0mm

SP height angle:0.00

Splitter height:0.00

Blade height:18.07mm

12+0 blades

foward rotation

Tapered tip angle: 18 degree

It is for OE compressor housing

3.High quality and competitive price.

We have more size and we can produce as your requirement .

All the compressor wheels have been balanced.

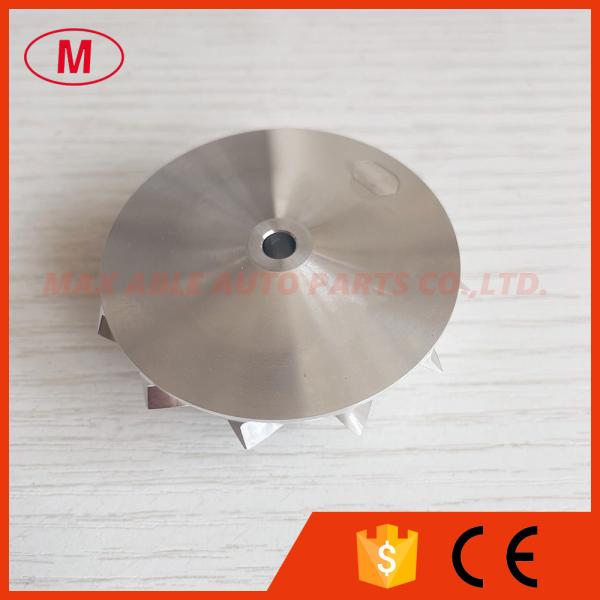

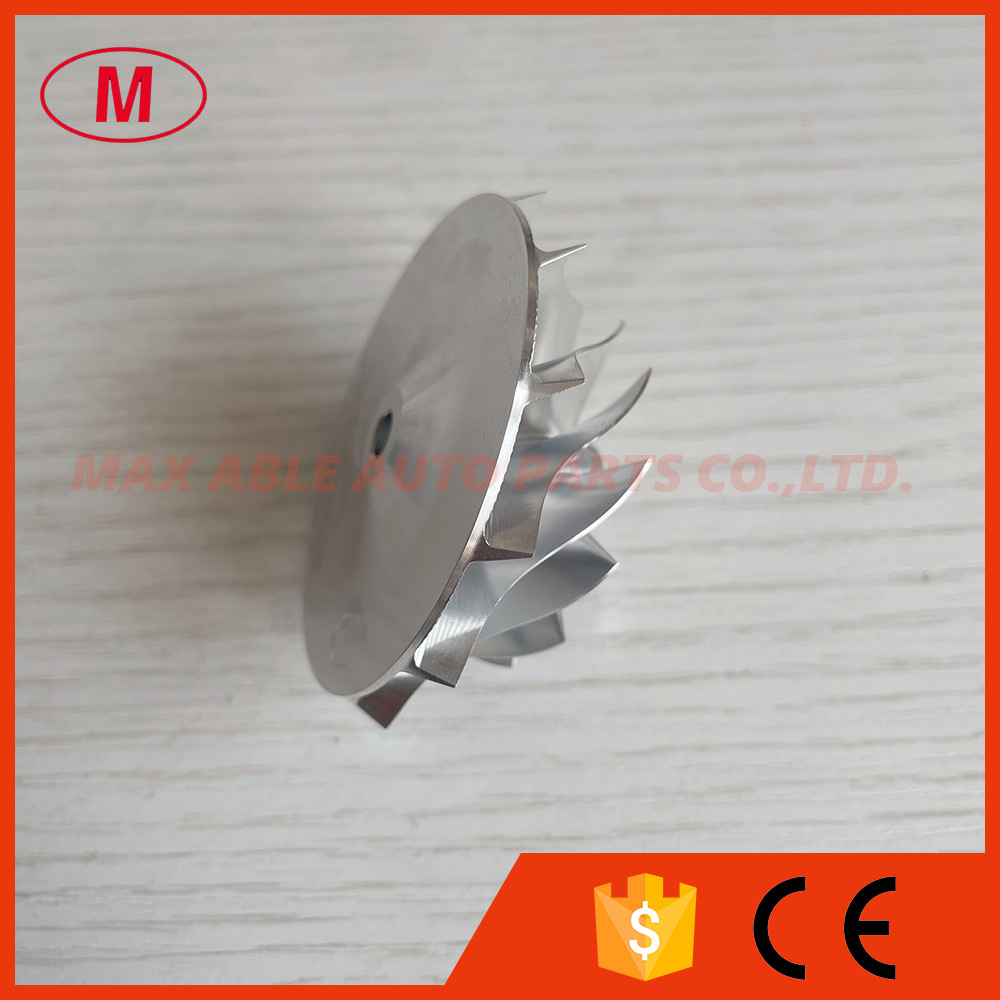

TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades turbo milling/aluminum 2618/Billet compressor wheel Images
